Hydraulic Geothermal Drilling Rig
Our KW series water well drilling rig and geothermal drilling rig can make a from100m--450m deep hole with a diameter of 105-300mm. As a newly-developed multi-functional hydraulic driller, it is highly efficient and energy saving. In practice, it is mainly used for dig water well, monitoring well, geothermal air-conditioner hole, and anchoring hole, especially the groundwater exploiting projects.
An advanced technology has been applied to our water well drilling rig and geothermal drilling rig. Thus the drilling process will be accelerated in loose rock. In the drill rig, a variety of high performance components are mounted, including high power hydraulic motor rotating device, oil cylinder propulsion and lifting devices, and high pressure borehole drill hammer. The drilling efficiency is quite high and the energy consumption is very low. As a kind of leading water well drilling equipment in China, the KW series products can be modified as truck mounted drilling rig.

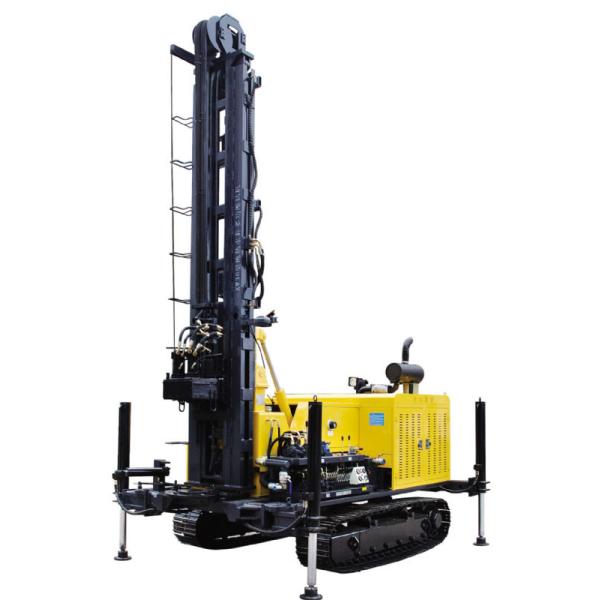

Our KW10 water well drilling rig is a light-duty, efficient, and multi-functional drilling machine. It is mainly used for drilling water well and some other kinds of holes in the earth. This deep hole drilling equipment can drill as deep as 120m holes in various kinds of stratums.
Feature
1. High torque rotating mechanism
A hydraulic motor driven straight tooth gear reducer from famous company is adopted for this water well drilling rig. It has a compact structure and can provide powerful rotating torque. Thus the drilling rod is less likely to be jammed, and enough toque reserve can be provided when drilling deep holes.
2. Oil pump components
A transfer case driven oil pump is adopted to provide a stable and reliable high pressure oil flow. The repairing of this water well drilling rig is also more convenient and cheaper.
3. Propulsion oil cylinder
A high pressure propulsion oil cylinder with big diameter is used for providing large lifting force (as high as 7 tons), guaranteeing the reliable drilling process.
4. Hydraulic leg
Four separately operated big-diameter hydraulic cylinders for legs have facilitated the drilling angle adjustment, as well as ensured the working stability of our water well drilling rig during the work.
5. Double cylinder for guide rail
There are two high pressure oil cylinders in the machine to enhance the stability of the rails.
6. Centralized control system
The centralized hydraulic system has been greatly optimized, ensuring the driller's stability and durability. The humanized design is also quite user-friendly.
7. Combined type positioning device
The combined type positioning device in this water well drilling rig can adjust the positioning plate according to the types of drill rod and drill hammer, ensuring the high precision of the drilling process.
8. Hoisting mechanism
A hoisting mechanism is available for the lifting and mounting of drill rod and drill hammer, thus less labor force is needed.
Specifications
| Model | KW10 |
| Hole diameter | Ф115-180mm |
| Hole depth | 120mm |
| Air consumption | 20-35 m³/min |
| Working pressure | 1.05-2.46 mPa |
| Ground clearance | 245 mm |
| Support cylinder stroke | 1000 mm |
| Propulsion cylinder stroke | 1750 mm |
| Propulsion power | 30000N |
| Lifting power | 70000N |
| Speed of rotator | Min. speed | 50 rpm |
| Max. speed | 100 rpm |
| Rotation torque | 3200 N.m |
| Walking speed | 0-2.5 km/h |
| Gradeability | 25° |
| Engine (Yuchai brand) |
| Engine model | YC4D80 |
| Power | 58kW/2400rpm |
| Matching Drilling components |
| Drill hammer | DHD360 |
| Rod diameter | Φ76/Φ89 mm |
| Length of rod | 3000 mm |
| Overall weight | 6000 Kg |
| Overall dimension | 6000×2300×2500 mm |
Recommend below parts for KW10 Water Well Drilling Rig
| Drill bit diameter | φ115-180mm |
| Drill rod | Φ76×3000mm /Φ89×3000mm |
| Drill hammer | DHD360 |
